Артикул: CW-PR-3K3W-01

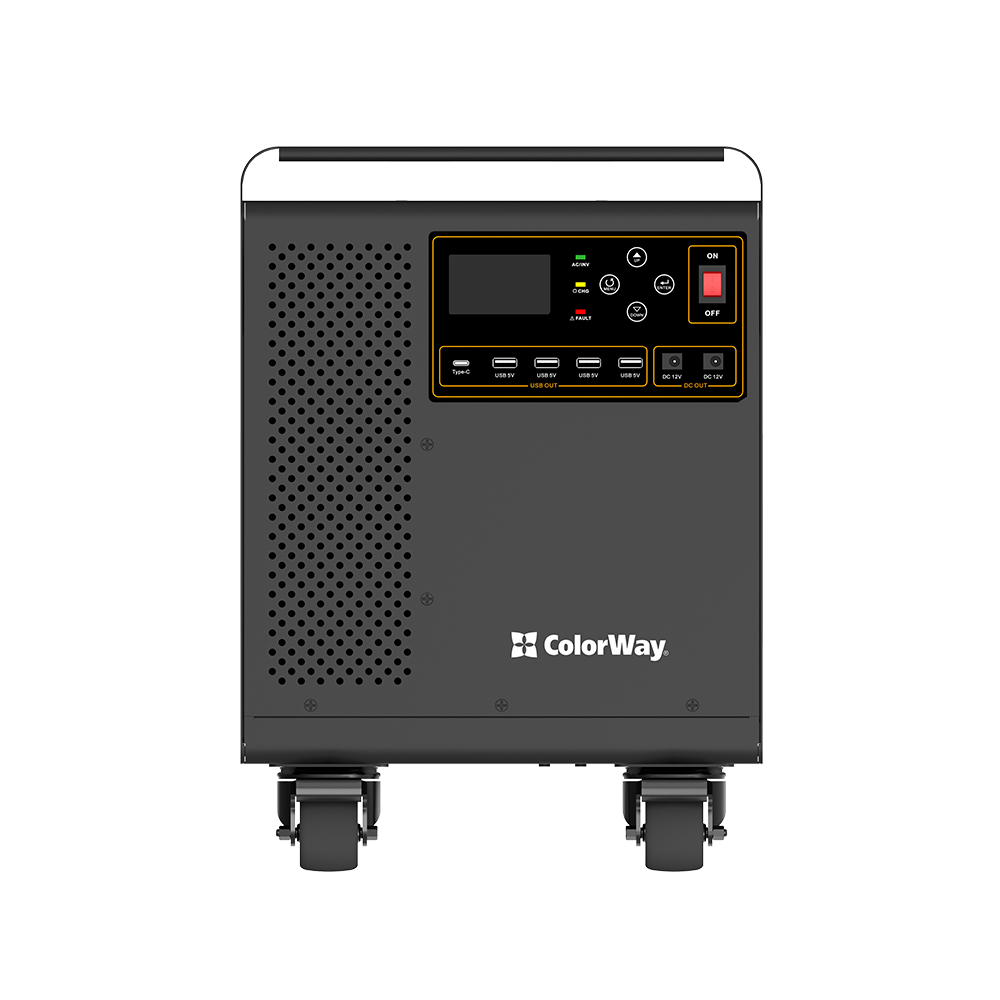

Charging station ColorWay 3000W/3200W_h /LiFePO4 (145В/60А MPPT) (CW-PR-3K3W-01)
Out of stock
Delivery and Payment
Оплата
WarrantyDescription
The ColorWay 3000W/3200Wh charging station is an advanced solution that combines a battery, an MPPT solar charge controller, a high-frequency pure sine wave inverter, and an uninterruptible power supply (UPS) module in a single device. The station is ideal for backup power supply in any conditions as well as for autonomous energy supply.
The high-frequency inverter with a pure sine wave has a high-quality design that ensures stable power, compact size, and ease of use. High efficiency and minimal idle mode losses allow for the use of high-capacity batteries and high-density components, improving system portability.
The MPPT solar charge controller utilizes advanced Maximum Power Point Tracking (MPPT) technology and intelligent battery management, ensuring maximum energy storage efficiency.
The station is designed for office and home use and serves as a reliable and efficient power source. Its versatility allows it to power various household appliances such as refrigerators, boilers, heating systems, laptops, stereo systems, and desktop computers.
Characteristics
| Type: | Charging Station |
| Battery Type: | lifepo4 A Grade |
| Capacity: | 125Ah/ 3200Wh |
| Material: | Metal |
| Output Power: | 3000W |
| Color: | Black |
Features
- 3 kW pure sine wave inverter with power factor cos cos φ ≈ 1
- Fast charging: From the grid (AC) or solar panels (PV): maximum current — 60A (±3A). Approximate charging time 80% ≈ 1 hr 40 min, 100% ≈ 2 hr 40 min., Combined mode from the grid (AC) and solar panels (PV): maximum current — 100A (±3A). Approximate charging time 80% ≈ 1 hr, 100% ≈ 1 hr 40 min.
- NO and NC dry contacts for signaling external devices (e.g. generator) when the battery voltage reaches the warning level.
- Compact design with universal wheels for easy transportation
- Input voltage and voltage range adjustment on the LCD screen
- UPS mode 3000Wt enables integration into a home or office network, ensuring uninterrupted operation of equipment regardless of power outages
- Supports USB, USB Type-C, and 12V DC outputs
- Power source priority selection (grid / solar panel / battery)
- Multi-level protection (overload, overheating, short circuit)
- 6000+ charge cycles at 80% DOD
- Built-in LiFePO4 battery with a capacity of 3200 Wh
- Multiple DC output ports for connecting various devices
- Plug & Play technology for convenient use
- Sturdy metal case designed for 24/7 continuous operation
- Flexible station and battery settings extend their service life to the maximum
- USB connection for monitoring and configuration.
