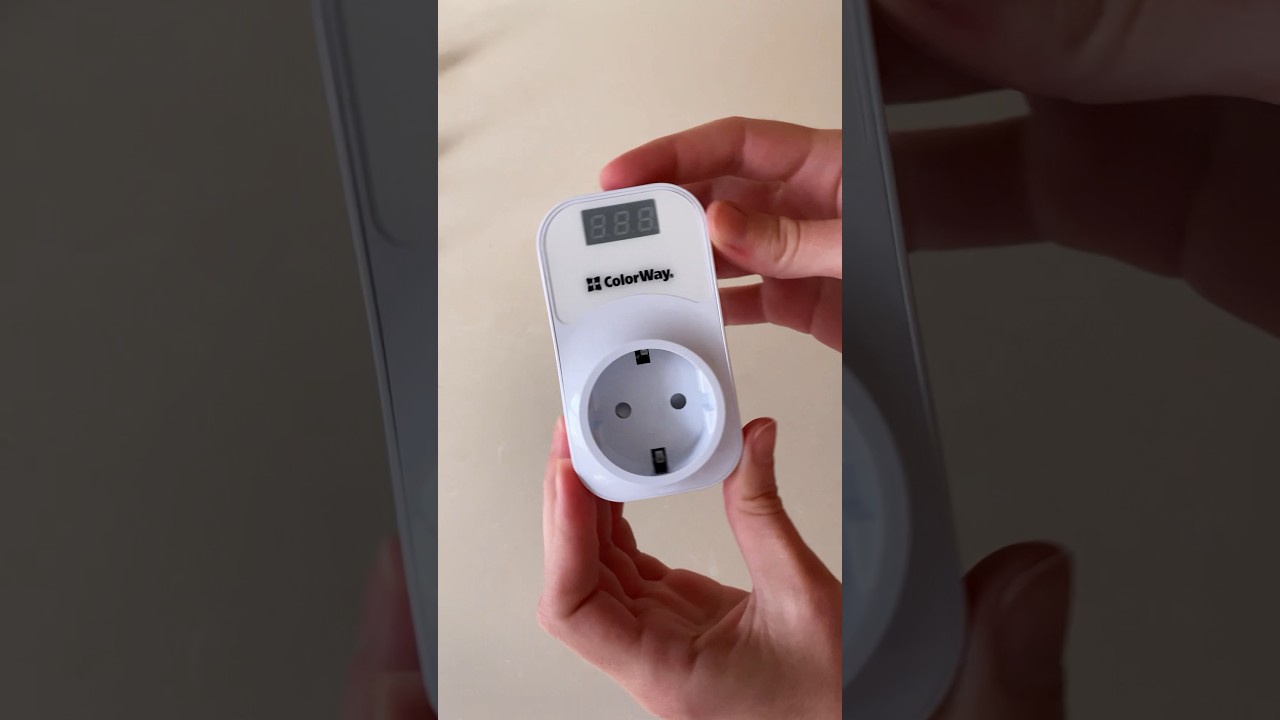

Voltage relay ColorWay (16A/3680W) 150V-210V/230V-280V DS2 (CW-VR16-02D)
The Colorway voltage relay is a special device for protecting against voltage surges in the network.
The relay analyzes the mains voltage in real time and automatically disconnects the connected equipment from the power supply when the voltage indicators reach critical levels. When the voltage returns to the set load range, it automatically turns on with a short delay. It has a display with voltage indication and flexible settings for the lower and upper voltage shutdown thresholds, as well as setting the equipment turn-on delay time from 5 to 999 seconds. The turn-on delay is necessary for equipment that cannot tolerate short-term shutdowns (refrigerators, freezers, air conditioners).
- Minimalistic design
- Compact dimensions
- High quality materials
- Disconnect the equipment to be protected from the outlet.
- Plug the socket into the ColorWay voltage relay.
- Insert the relay into the power outlet. The protector will display the low and high voltage trip value for 2 seconds, then the delay timer will begin. After 30 seconds, the current voltage indicator will be displayed and the device will turn on for protection. If the mains voltage exceeds the value of the set protection range, the relay will turn off the equipment immediately. After the voltage is restored, the relay will resume normal operation according to the set delay time
Features
- Operating voltage: AC 220V/50Hz
- Maximum load: 16A, 3680W
- Delay time: 005 to 999 seconds
- Low voltage protection range: 10-210V can be set
- Surge protection range: 230-280V can be set
- Operating temperature: -5 to 55°C
- Maximum operating humidity: 85% RH
- Warranty: 12 months
Composition
- Voltage Delay
- Packaging
